Front Bed Photos

Photos taken 28-Oct-06
Link to rear deck photos
Back to design page

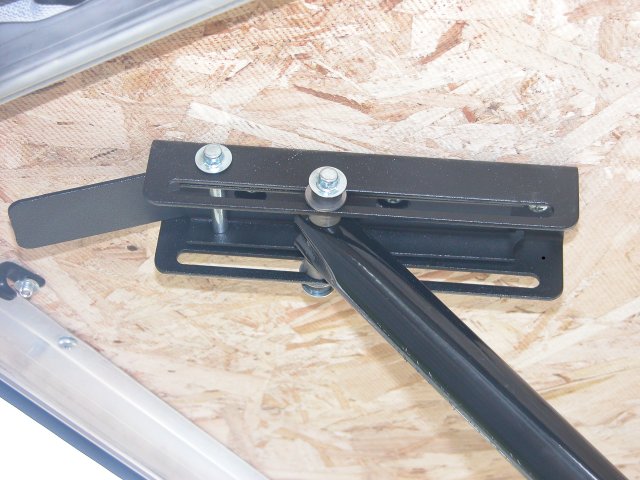

#1 - Front  bed, drivers side corner, support bar stowed

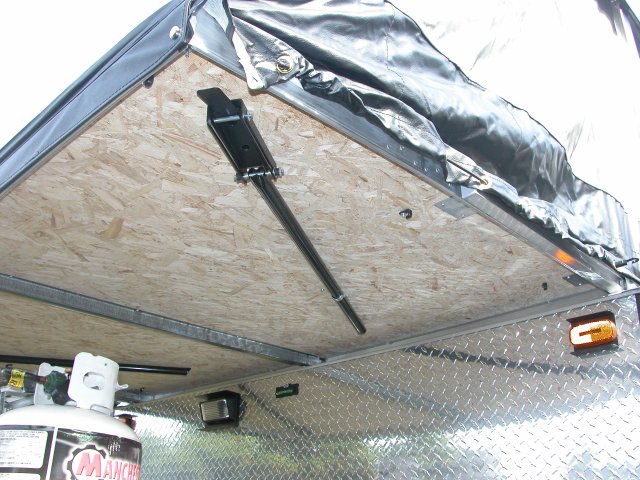

#2 - Front bed, support arms in place


#3 - Front bed, support arm dropped, NOT locked in place

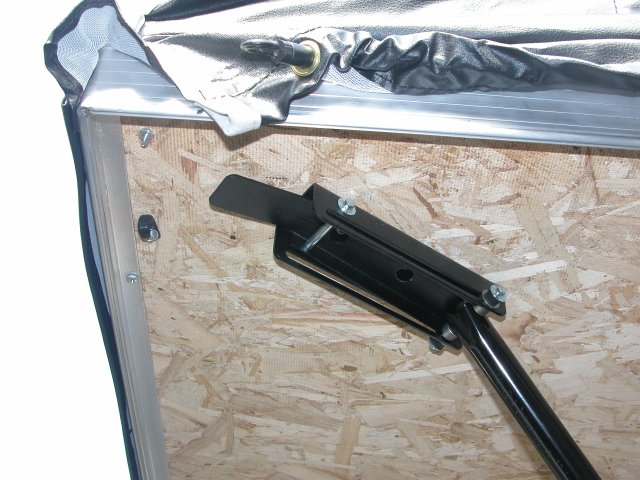

#4 - Front bed, support arm locked in place

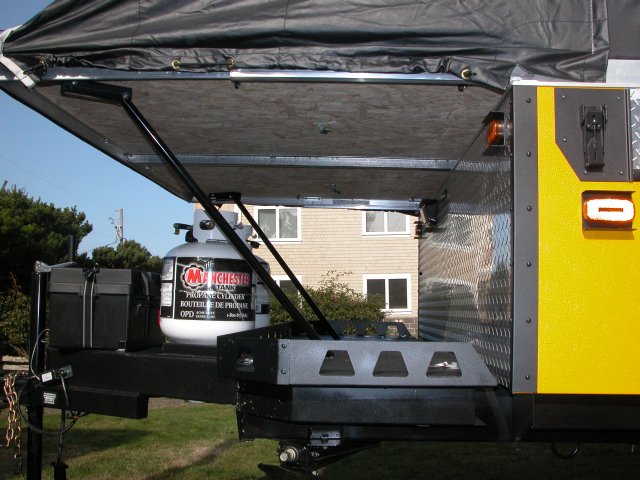

#5 - Front bed, passenger side support arm in place

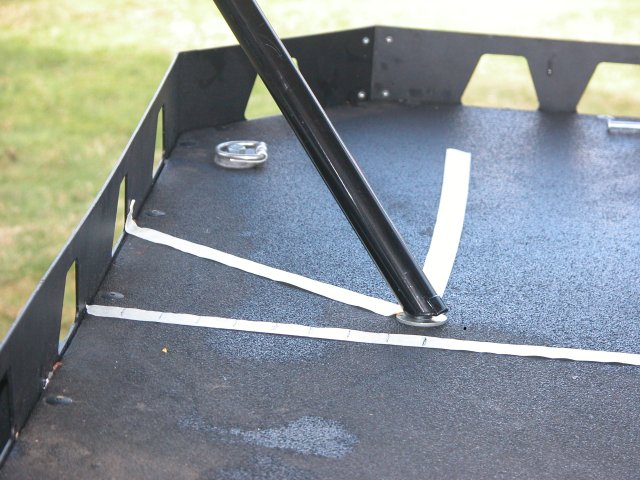

#6 - Front deck with support arm in place (masking tape on deck)

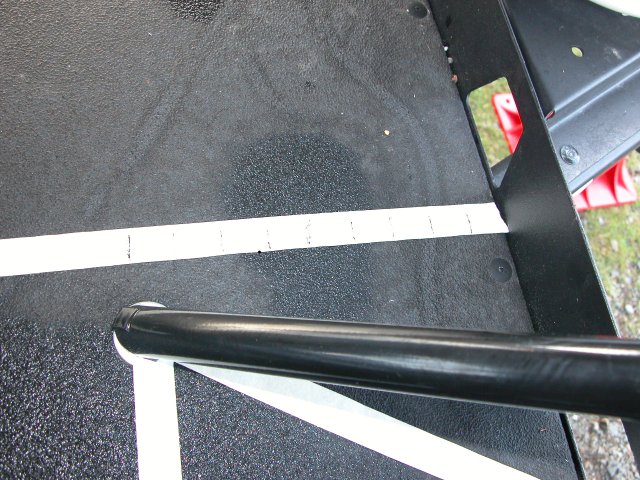

#7 - Front deck (looking down on deck)

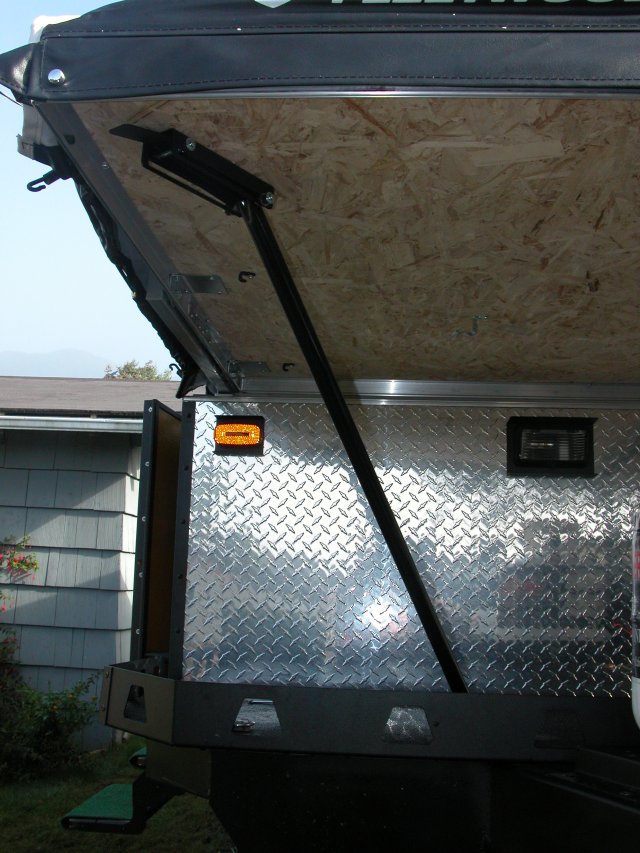

#8 - Front deck, support arm in place (view from drivers side looking at passenger side corner)

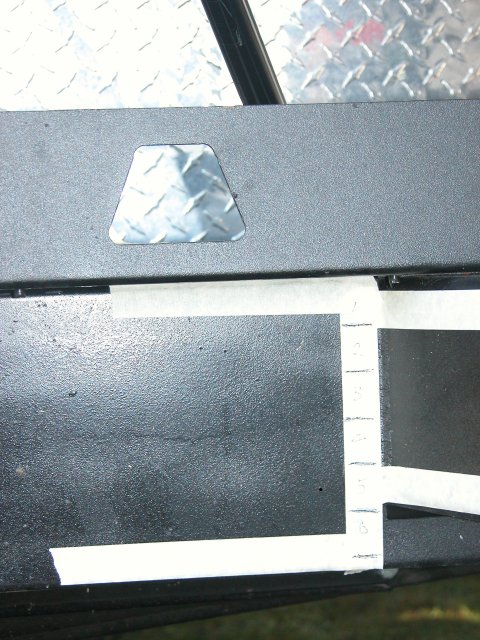

#9 - Front bumper, area below passenger side support, (masking tape applied to tongue and bumper)

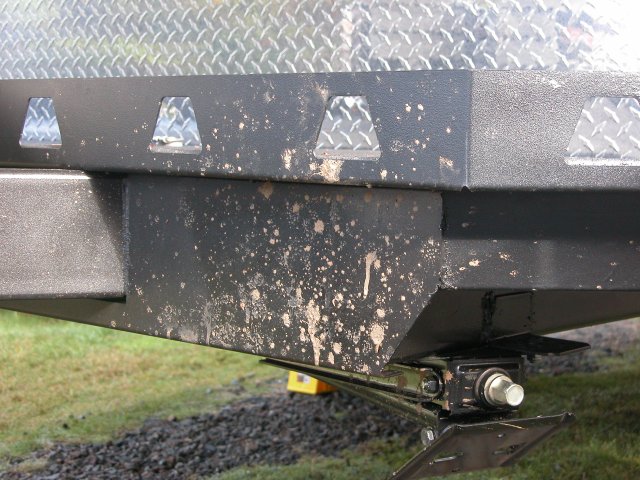

#10 - Front bumper, drivers side
