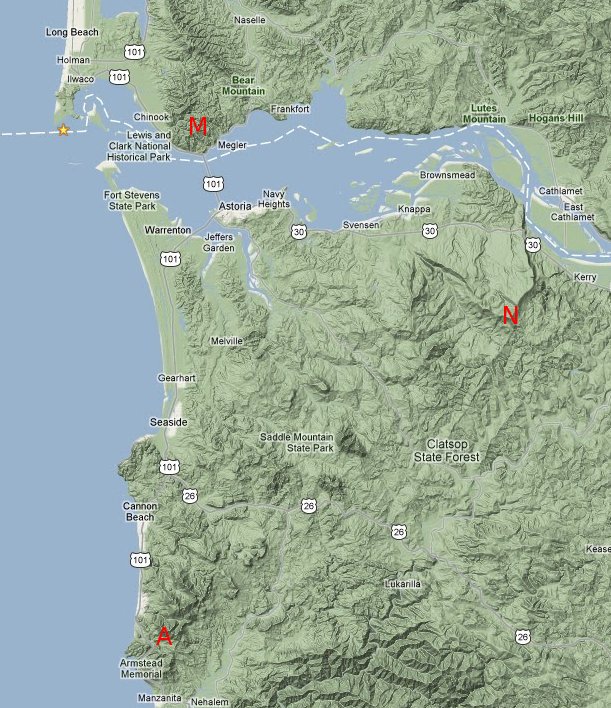

SEARC Linked Repeaters







M
Megler
145.450  2M Tx - out
144.850  2M Rx - in (118.8 PL)





N
Nicolai
146.760  2M Tx - out
146.160  2M Rx - in (118.8 PL)







A
Arch Cape
146.740  2M Tx - out
146.140  2M Rx - in (118.8 PL)



The linking hub is Megler with the 440 link there operating as a true repeater, both receive
and transmit at the same time. All other sites either transmit or receive on the link frequency
but not both simultaneously.

At the Megler site there are two antennas for the link radio with the higher antenna used for output
and the lower input due to proximity of another repeater.
