Arch Cape Repeater Coverage
Repeater Coverage Map

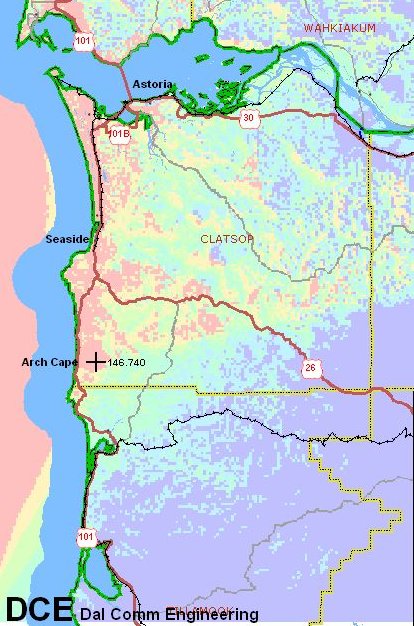

This map gives repeater coverage for the Arch Cape repeater. The low signal cutoff of -3 dBu corresponds to the sensitivity of a mobile at 0.25uV using a VHF 5/8 wave antenna. This is roughly S1.
E-Field dBu
-3 and below
-3 to 7
7 to 17
17 to 27
27 to 37
37 and above
Coverage analysis generated by Dalcomm Engineering. PO Box 24, Banks, Oregon 97106. Office: 503-324-4450, Mobile: 503-961-5953.
